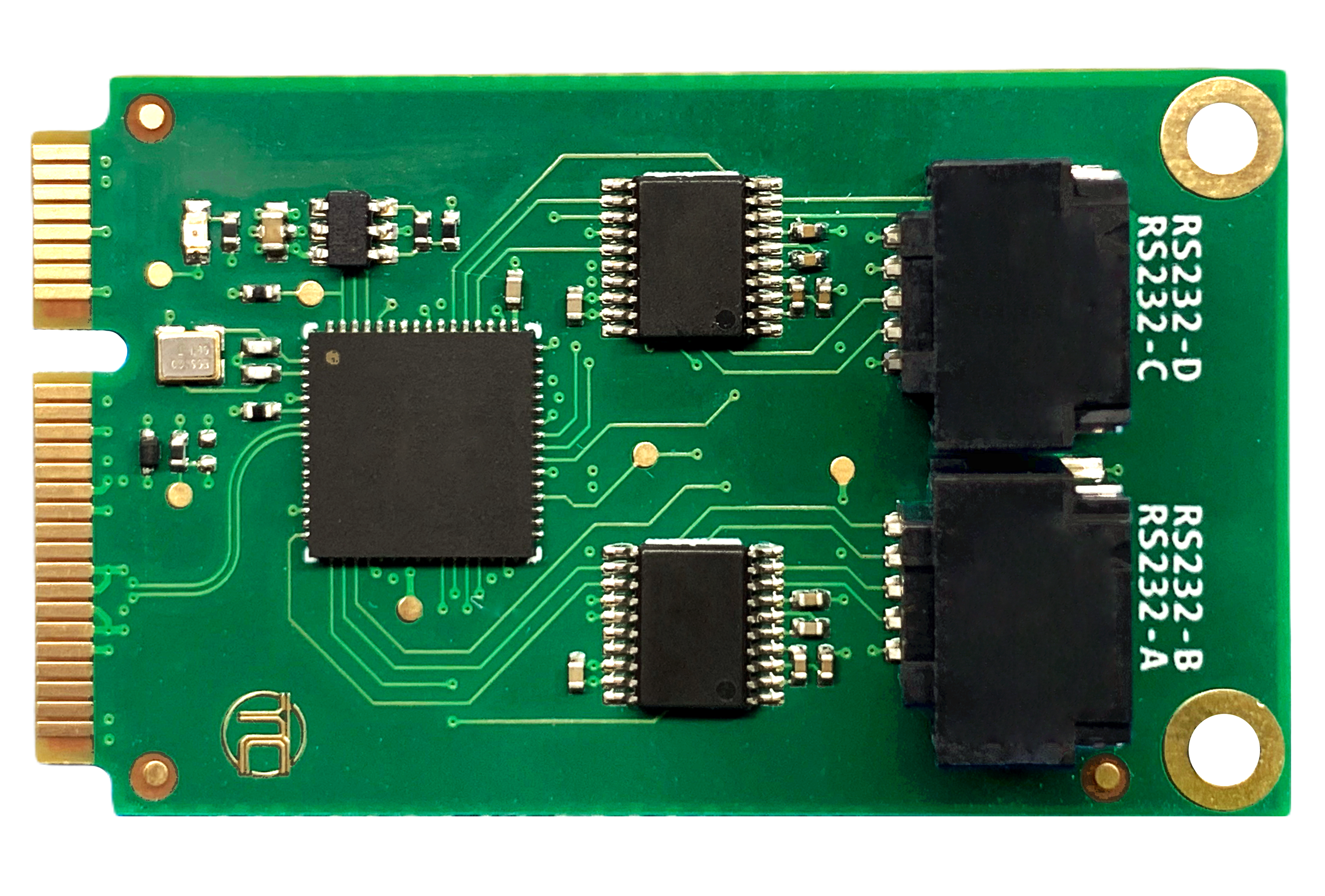

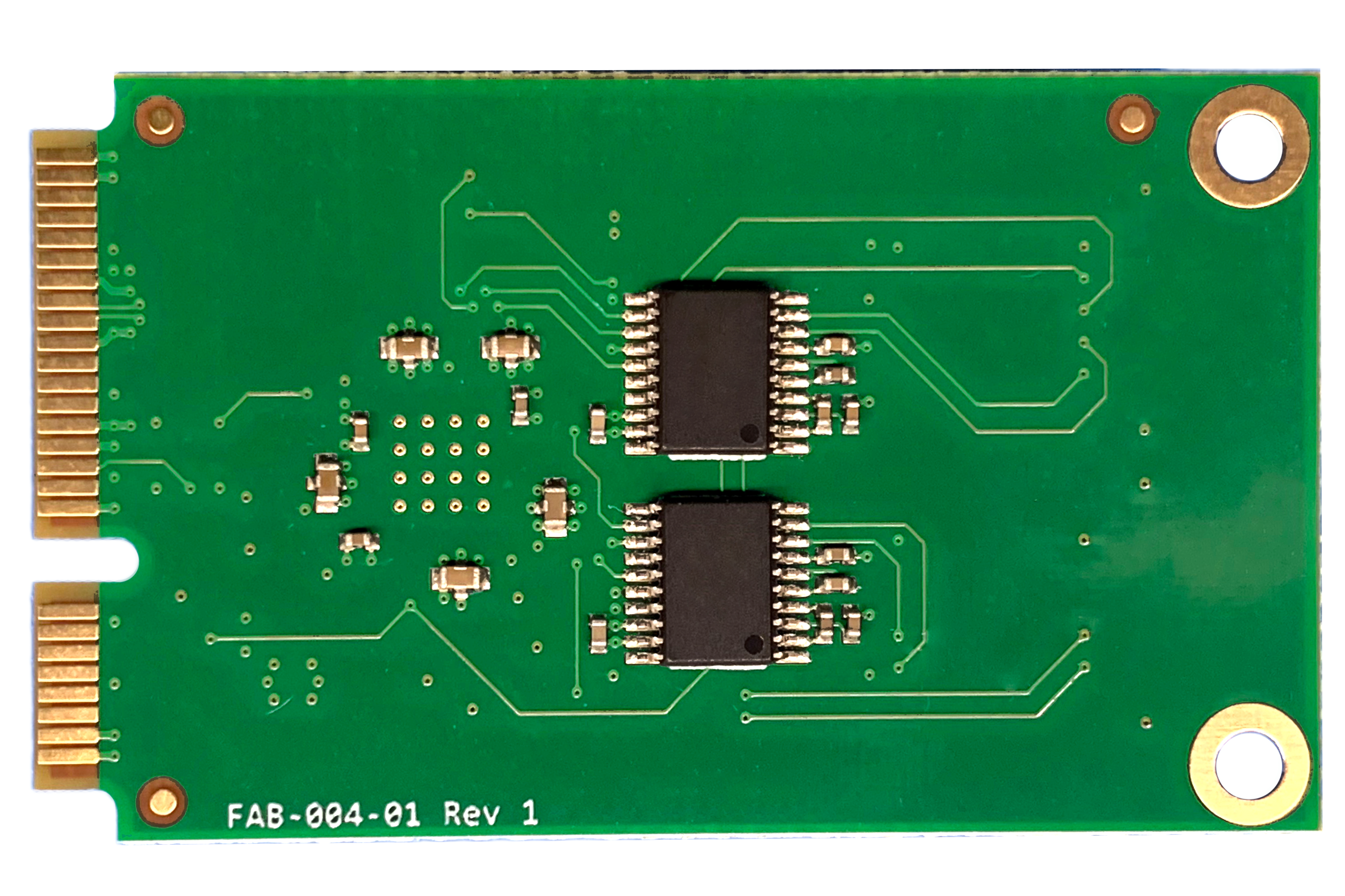

TC-004-01 is a rugged, high performance full size PCIe Mini Card which adds 4 independent RS-232 serial ports to any embedded system or computer. Supporting baud rates up to 1Mbit/s and large 2 kilobyte transmit and receive buffers on each channel, this card is designed for reliable, high speed serial communication. Each channel supports RTS/CST hardware flow control and has standard 5kΩ termination on the receiver inputs.

TC-004-01 exceeds TIA/EIA-232-F electrical specifications, utilizing one of the highest performance transceivers on the market. Robust ESD protection on all communication signals and receiver input voltage range of ±25V ensures operation in harsh electrical environments. The Molex Micro-Lock Plus connector provides the highest reliability in cable retention and sets the TC-004-01 apart from other products in its class. An audible positive-locking connector and large metal solder tabs ensure a solid, reliable connection in high vibration and industrial temperature environments.

Designed with a high performance USB bridge from FTDI, the TC-004-01 can integrate into any embedded system with minimal software or firmware effort. Plug-and-Play drivers for both Windows and Linux are available and supported by FTDI, the proven industry standard for USB-Serial bridge chipsets.
